AA Alpine Air Ambulance – which specialises in air rescue – has been flying from Birrfeld airfield since 2013 with a base in Aargau and from Balzers heliport since 2019. Its helicopters, which are ideally equipped for air rescue, are used for rescue operations, transfers and search and rescue missions. Their main purpose is to provide people with medical assistance quickly and safely in the event of accidents and illness.

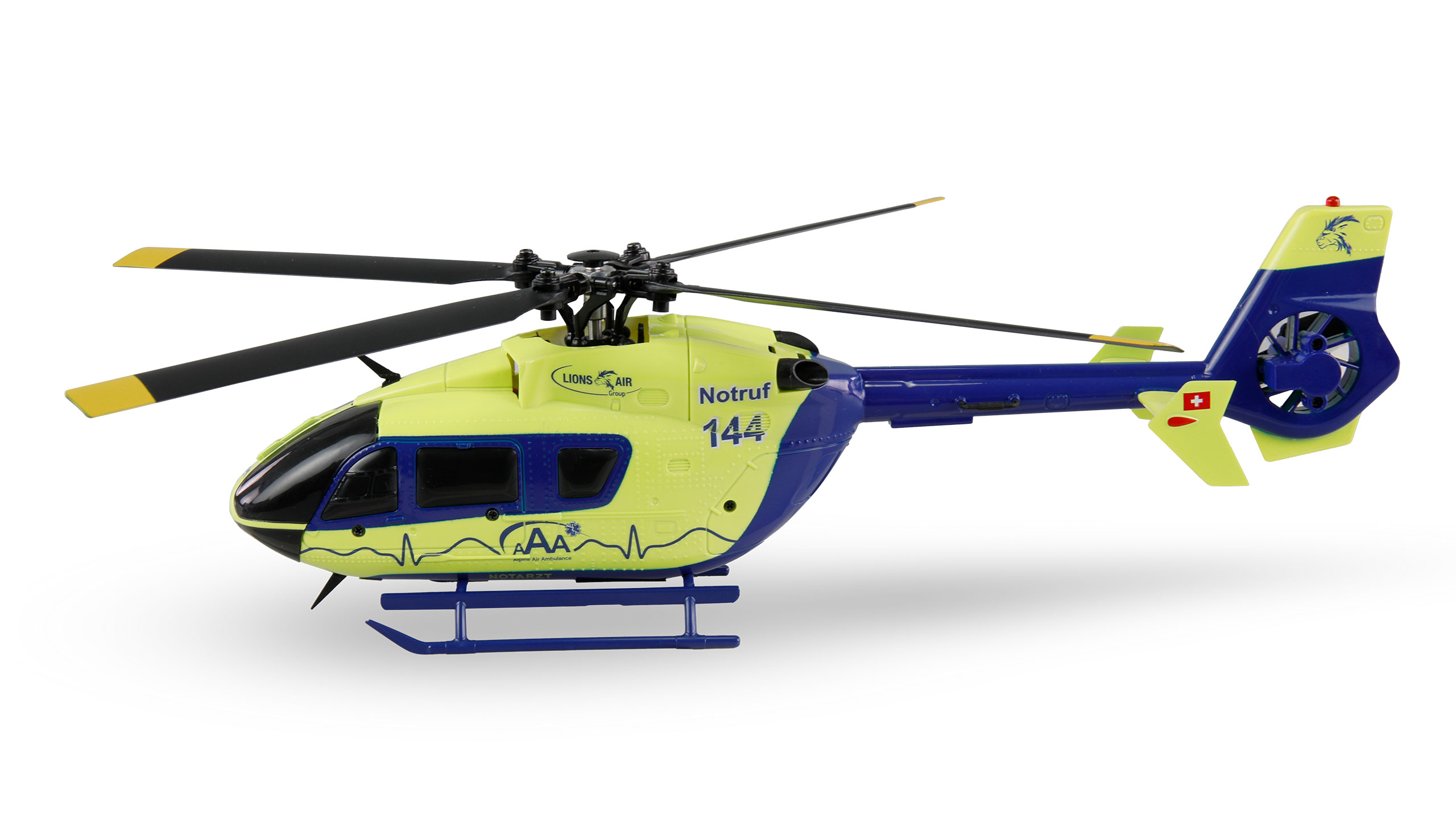

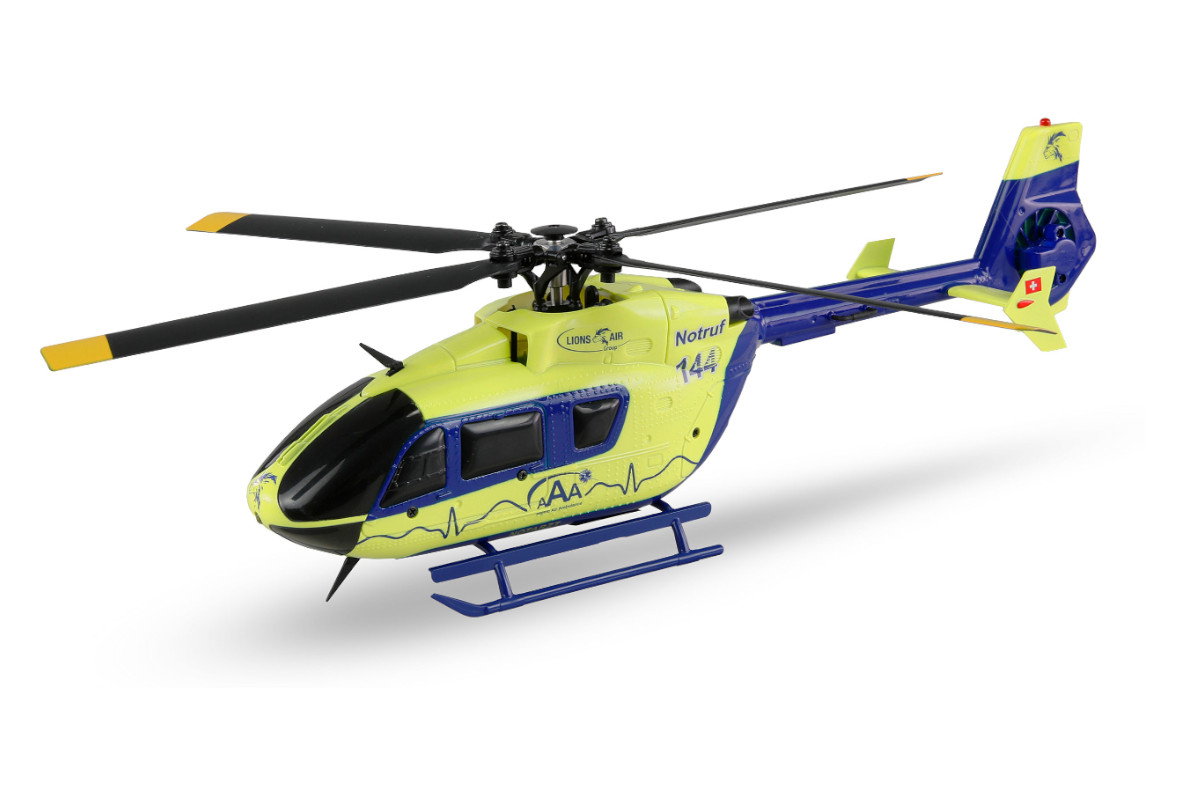

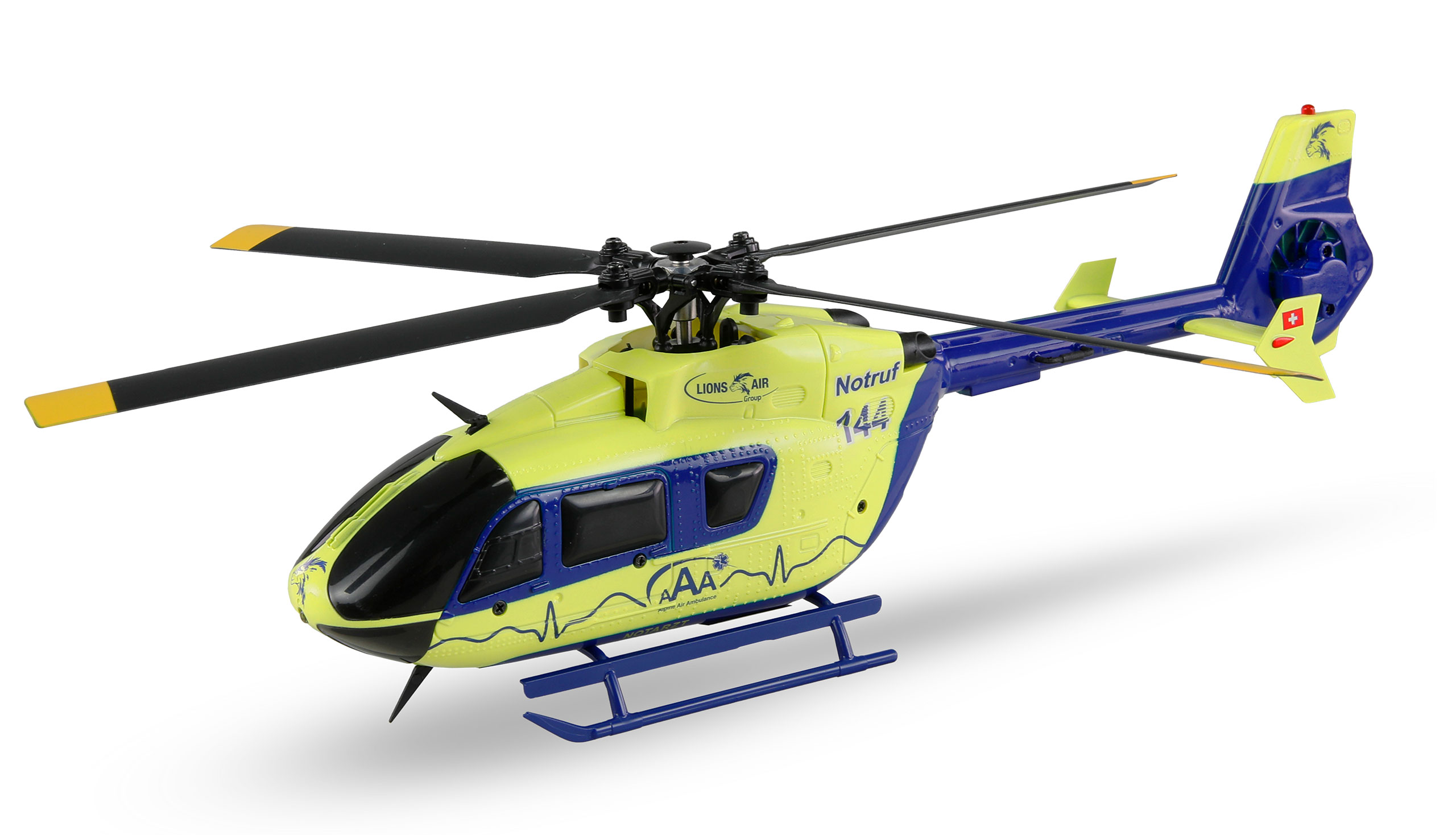

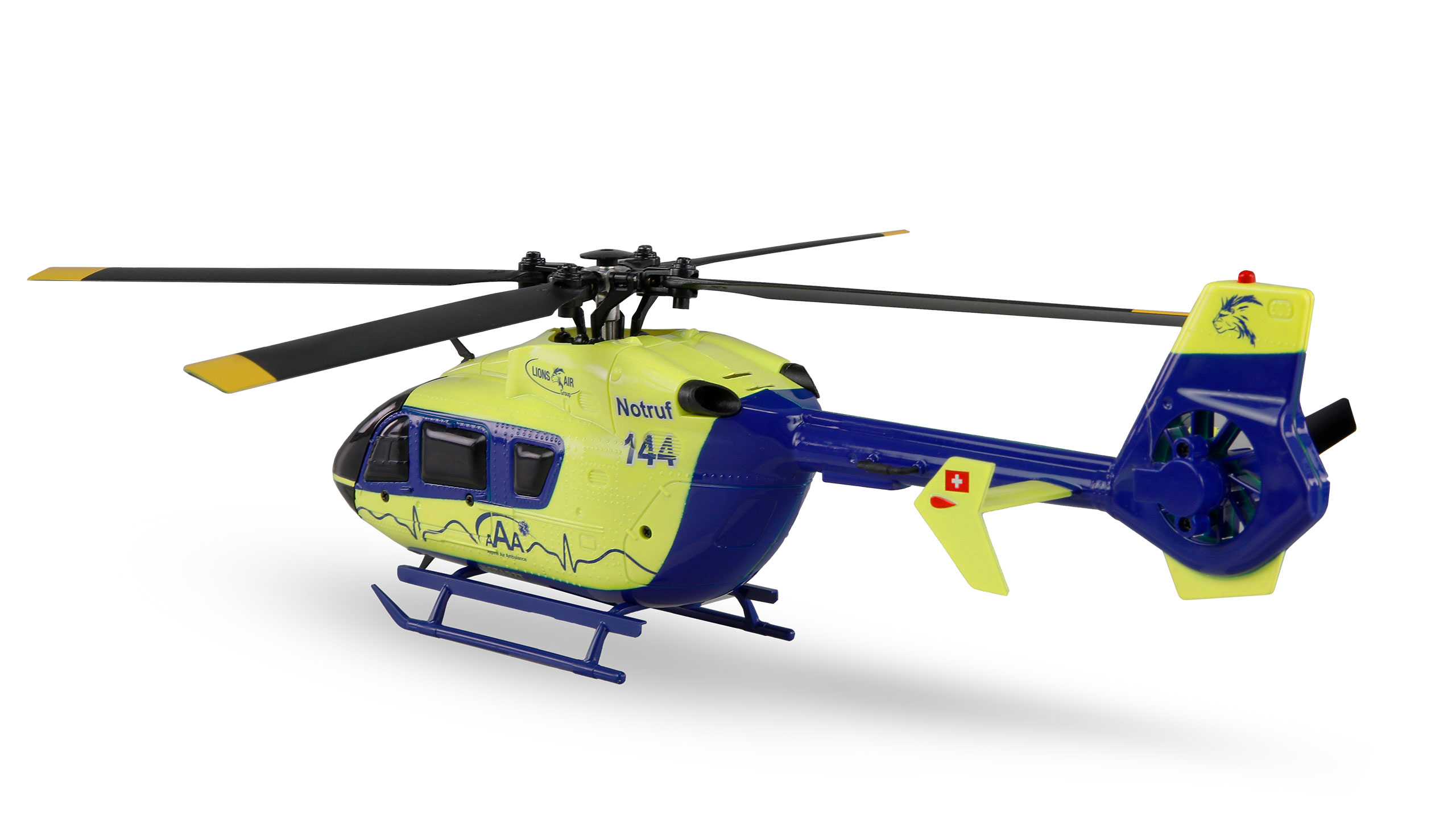

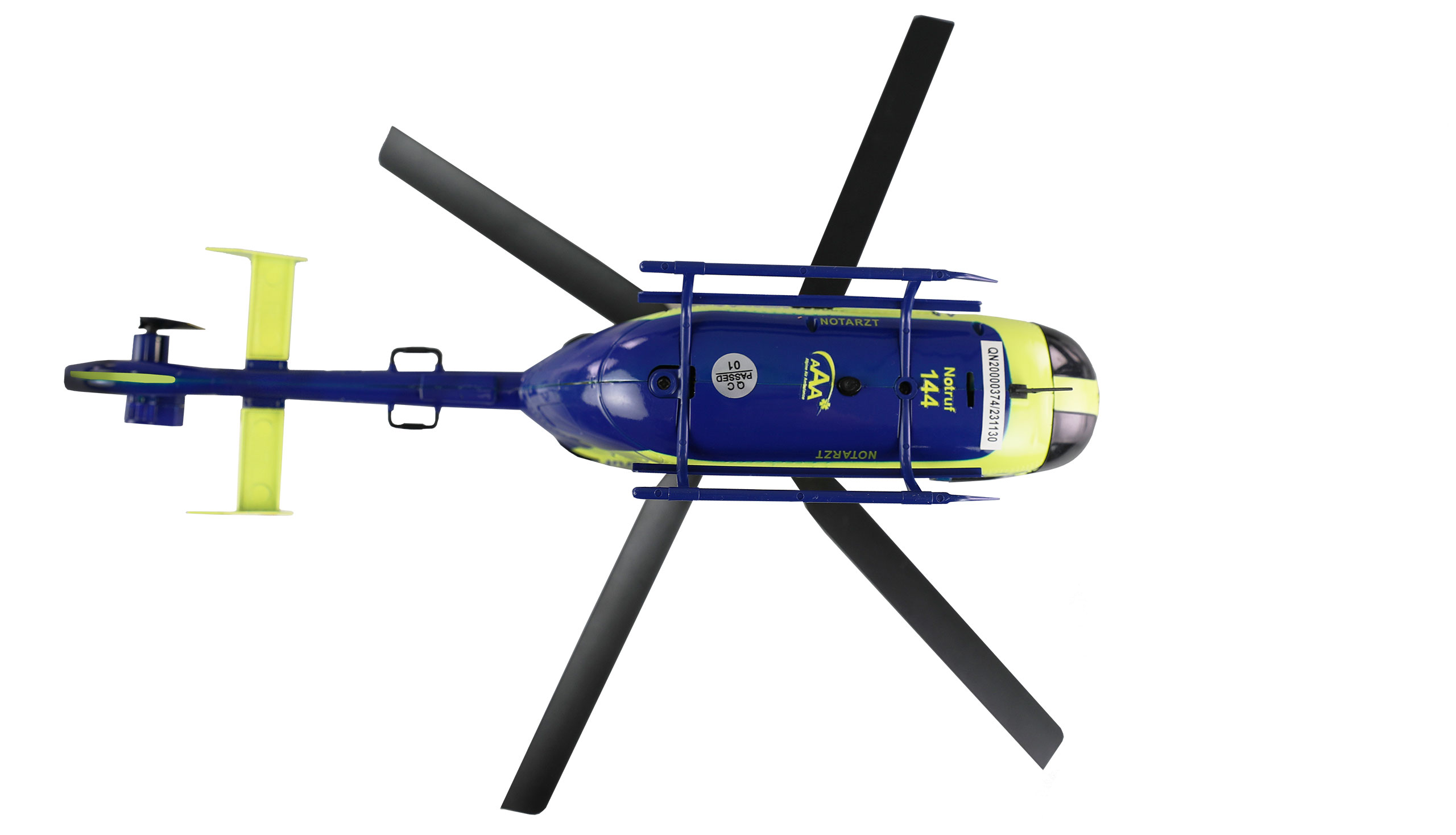

This AFX-135 is a licensed scale replica with a true-to-original paint finish. The remote-controlled AAA helicopter features numerous authentic details: even the individual rivets of the cabin, which is made of solid plastic, are reproduced. This scale helicopter has LED lighting at the front and rear, which rounds off the impressive look. Thanks to high-quality electronics including auto take-off and landing, the flight behaviour is good-natured and the helicopter is suitable for beginners despite the multi-blade rotor head. The flight time is up to 12 minutes with the integrated, intelligent battery. The special feature here is that a USB charging socket is built into the battery, which is simply connected to the USB cable supplied. The battery and the model have a voltage monitoring function (LED starts flashing when the voltage gets too low). This means that the pilot always knows when it is better to return to recharge the battery. The high-quality 2.4 GHz transmitter is easy to hold and has three different flight phases (from beginner to advanced), aluminium sticks and the option to switch from Mode 2 (default setting) to Mode 1. The remote control also features the official AAA logo.
This AFX-135 is supplied as an RTF version (Ready-to-Fly), i.e. all components – apart from standard household batteries for the remote control – are already included in the package and the helicopter can fly immediately after charging the battery.
Highlights:
Licence model and scale paintwork in AAA design (Alpine Air Ambulance): A real eye-catcher for all scale model flight fans
LED lighting front and rear: Thanks to the bright LED diode on the cockpit canopy and the red LED on the tail, the direction of flight is clearly visible at all times, even several metres away
4-blade rotor head like the original: Increases the scale factor even further and brings even more flying pleasure for scale fans
Further features:
Auto-start & auto-landing at the touch of a button and soft start
LiPo battery incl. charging socket for easy charging with supplied USB cable

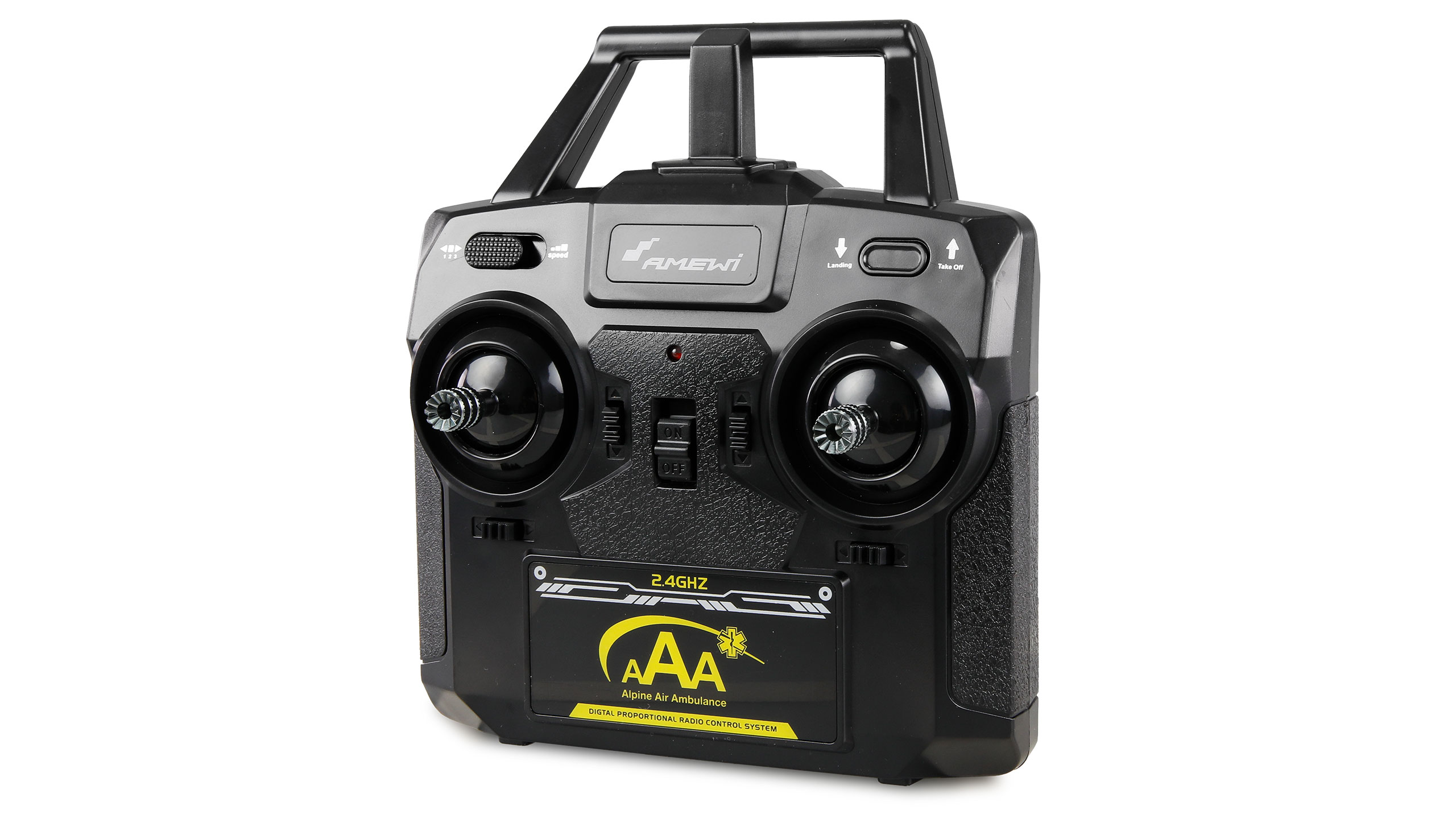

2.4GHz transmitter with aluminium sticks and AAA labelling, proportional control
DualRate for servo deflections, trimming of servo travel possible
Mode 2 <-> Mode 1 changeover possible
Automatic, stabilising hover mode (altitude hold) via electronics
6-axis gyro
Powerful brushed motor (brushed)
Three different flight phases for beginners to advanced pilots
Suitable for indoor and outdoor use in light winds
Detailed cabin/cockpit look
Technical data:
Fuselage length: 235mm
Fuselage height: 80mm
Rotor diameter: 256mm
Main material: high-strength plastic
Weight ready to fly: approx. 100g
Servos: 2 micro servos / swashplate
Remote control: 2.4GHz, 6 channels, mode 2 and mode 1
Range: approx. 50-80m
Battery: LiPo 2S 7.4V 350mAh, hard case, 42x29x15mm, 24g
Flight time: up to 12min
Charger: USB cable
Charging time: approx. 60-90min

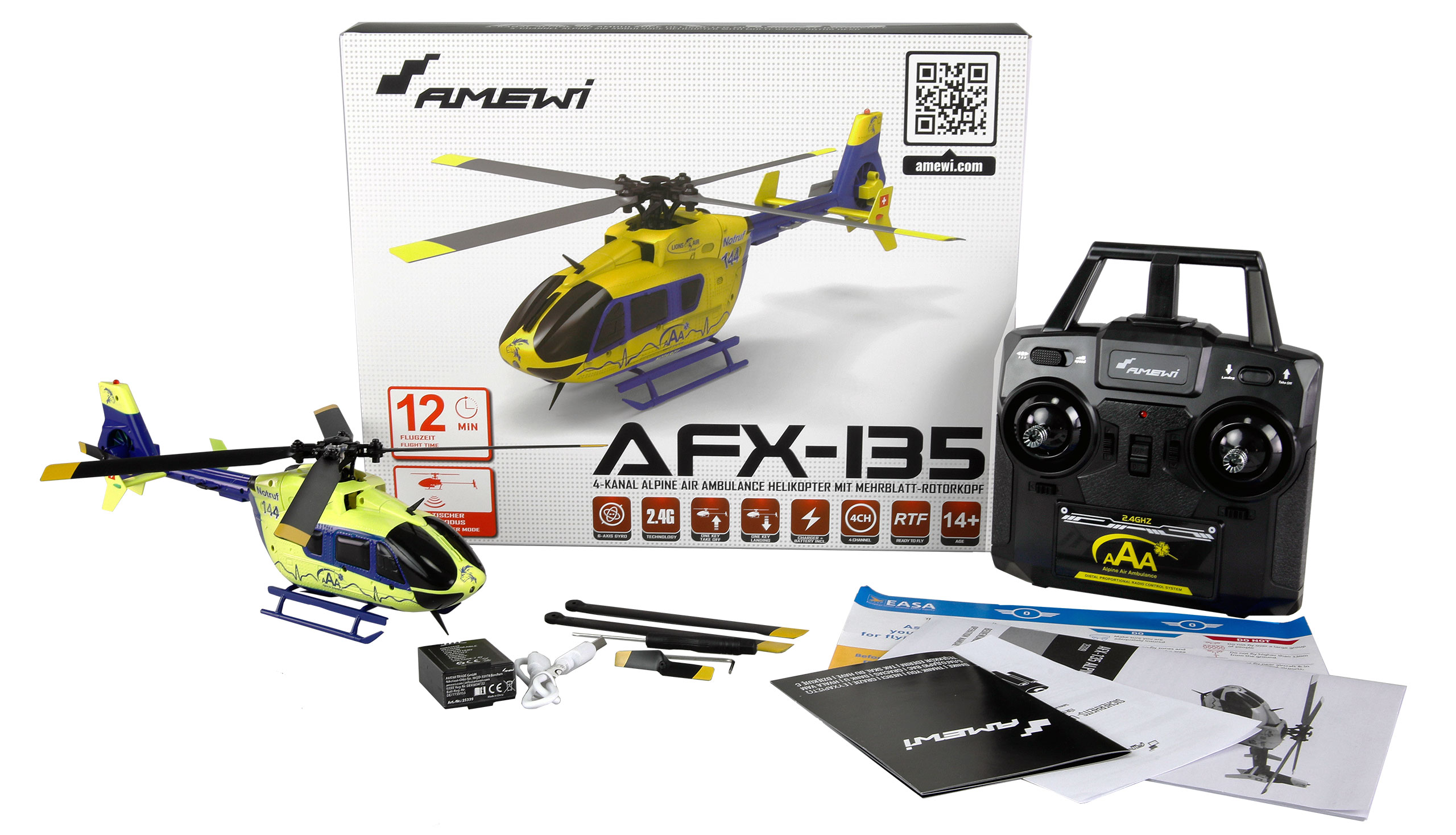

Scope of delivery:
Model
Remote control
Charging cable
Spare rotor blades
Tool kit
EASA info sheet
Instructions DE/EN
Required accessories:
4x 1.5V AA batteries for the remote control
