Product Details
The performance, style, and value of the SCX24 Jeep Wrangler JLU are now even better than before. Oil-filled shocks, Spektrum electronics, and new body colors have been added for exciting indoor and outdoor adventuring that everyone can enjoy.
Key Features
- Detailed Jeep Wrangler JLU polycarbonate body in two new color options
- New oil-filled shocks
- Durable metal chassis
- Spektrum SLT2 2.4GHz radio system
- Spektrum 350mAh LiPo battery and USB charger

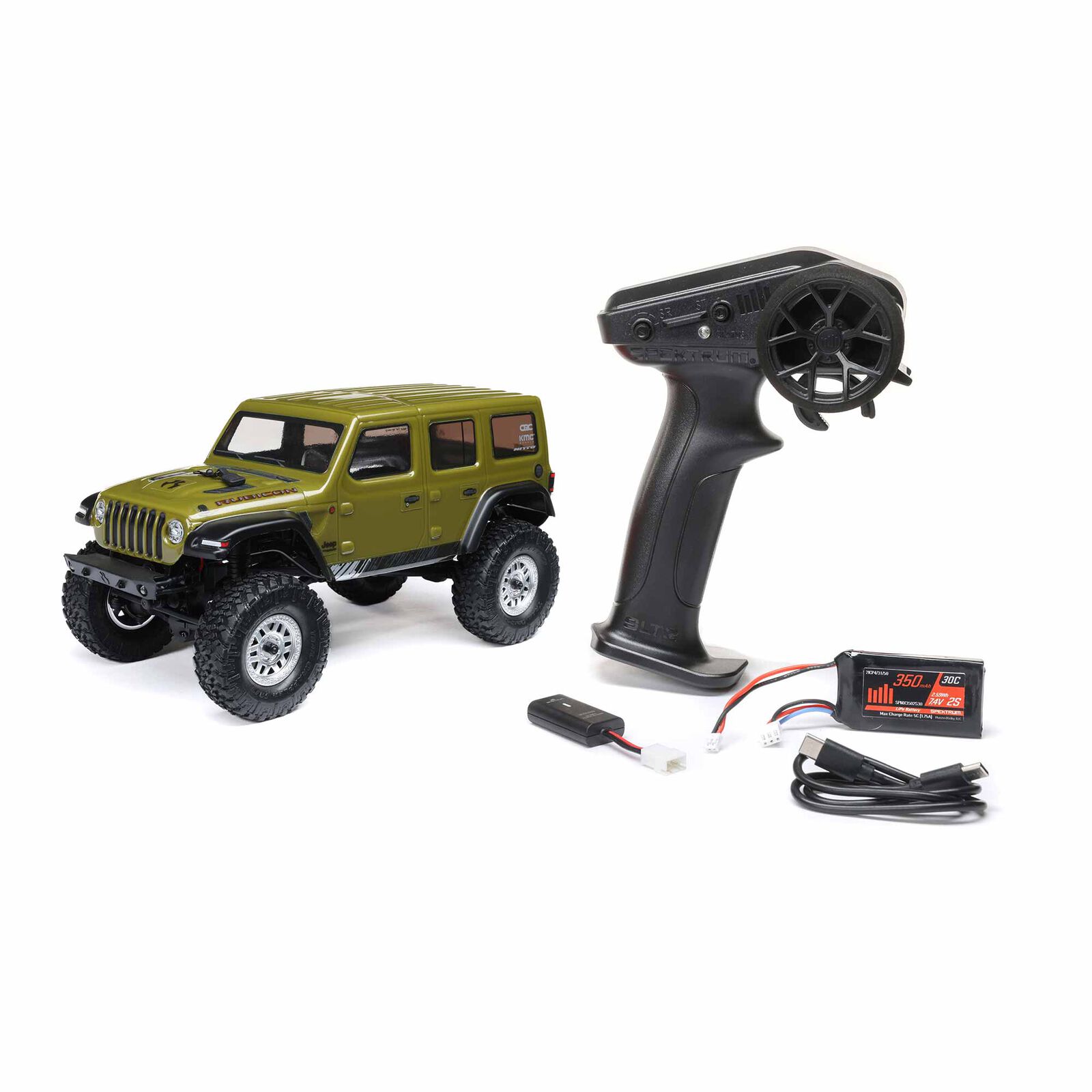

In The Box
- (1) 1/24 SCX24 Jeep Wrangler JLU 4X4 Rock Crawler Brushed RTR
- (1) Spektrum SLT2 2.4GHz radio system
- (1) Spektrum 10A Brushed ESC / SLT Receiver Combo
- (1) Spektrum 350mAh LiPo Battery and USB Charger
- (1) Dynamite 88T Brushed Motor
- (1) Axial AS-1 Micro Servo
- (4) AA Transmitter Batteries
- (1) SCX24 Jeep Wrangler JLU 4X4 Product Manual
Needed to Complete
- (1) USB Power Adapter
Features
- Detailed Jeep Wrangler JLU polycarbonate body in two new color options
- New oil-filled shocks
- Durable metal chassis
- Spektrum SLT2 2.4GHz radio system
- Spektrum 350mAh LiPo battery and USB charger
- Licensed KMC Machete Wheels
- Licensed Nitto Trail Grappler M/T tires

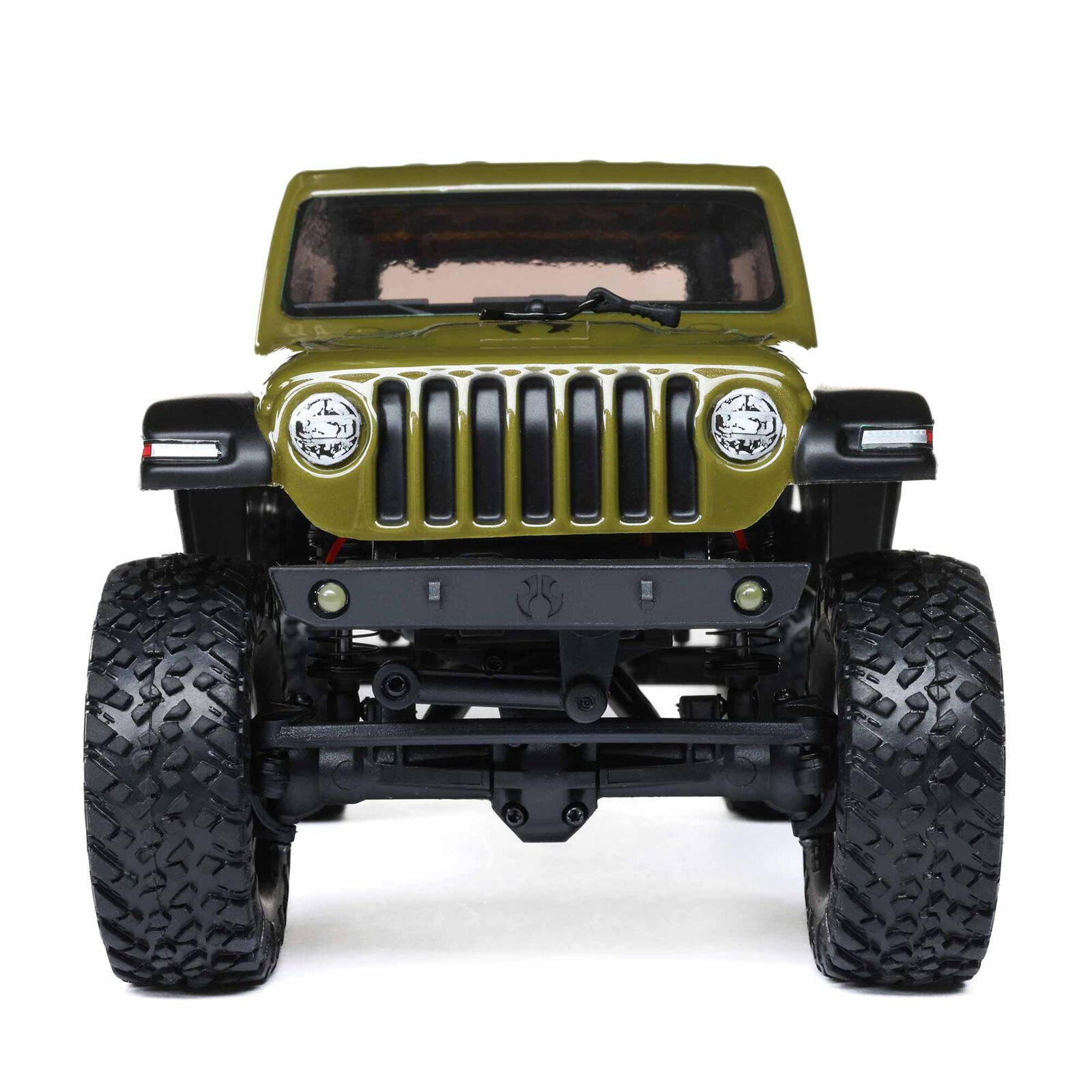

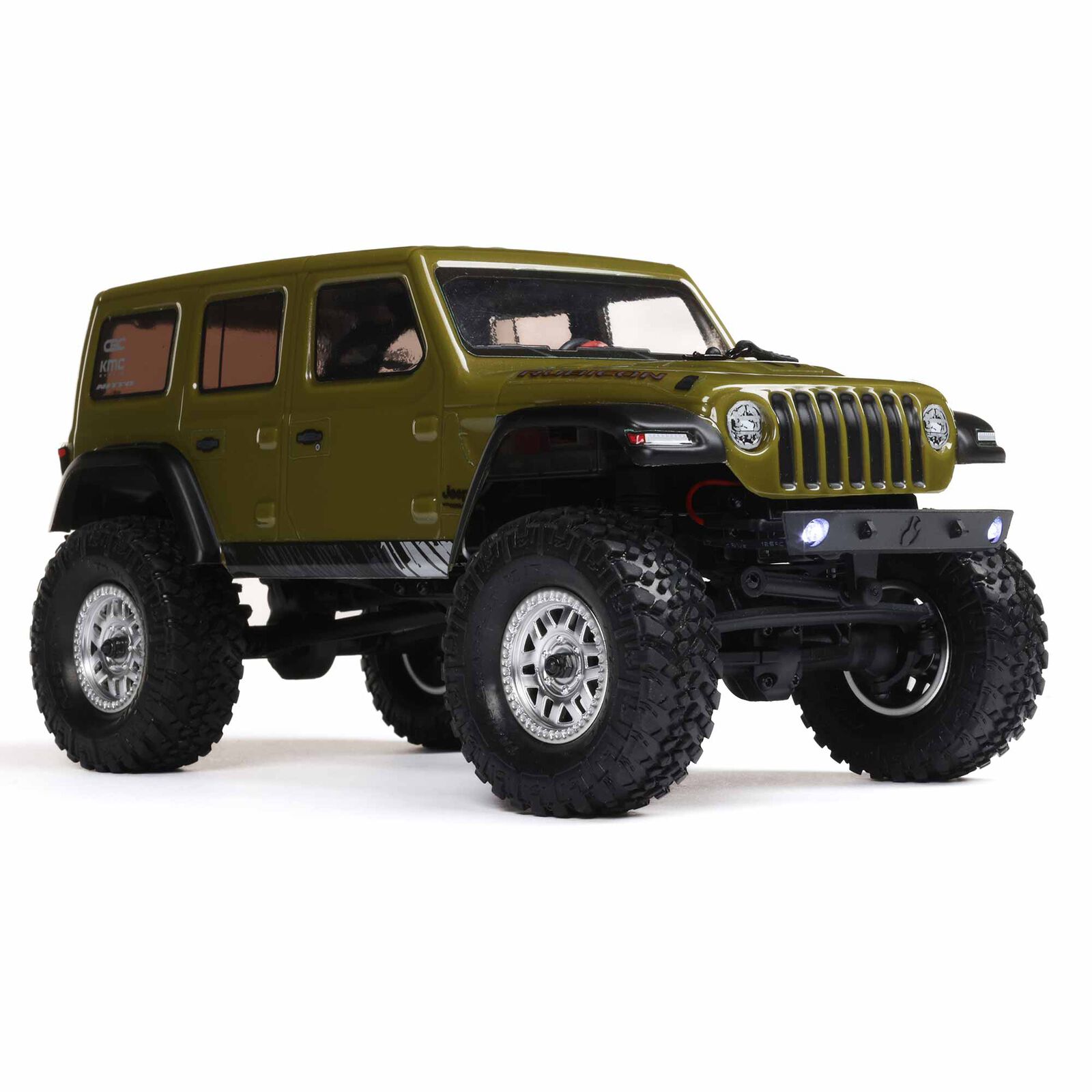

- Two LED lights in the front bumper
- 030-size brushed motor
- Strong, realistic steel frame rails
- True, full-time 4-wheel drive
- Worm drive gear on front and rear axles
- 3-Link front and 4-link rear suspension
- Fully equipped and ready-to-run

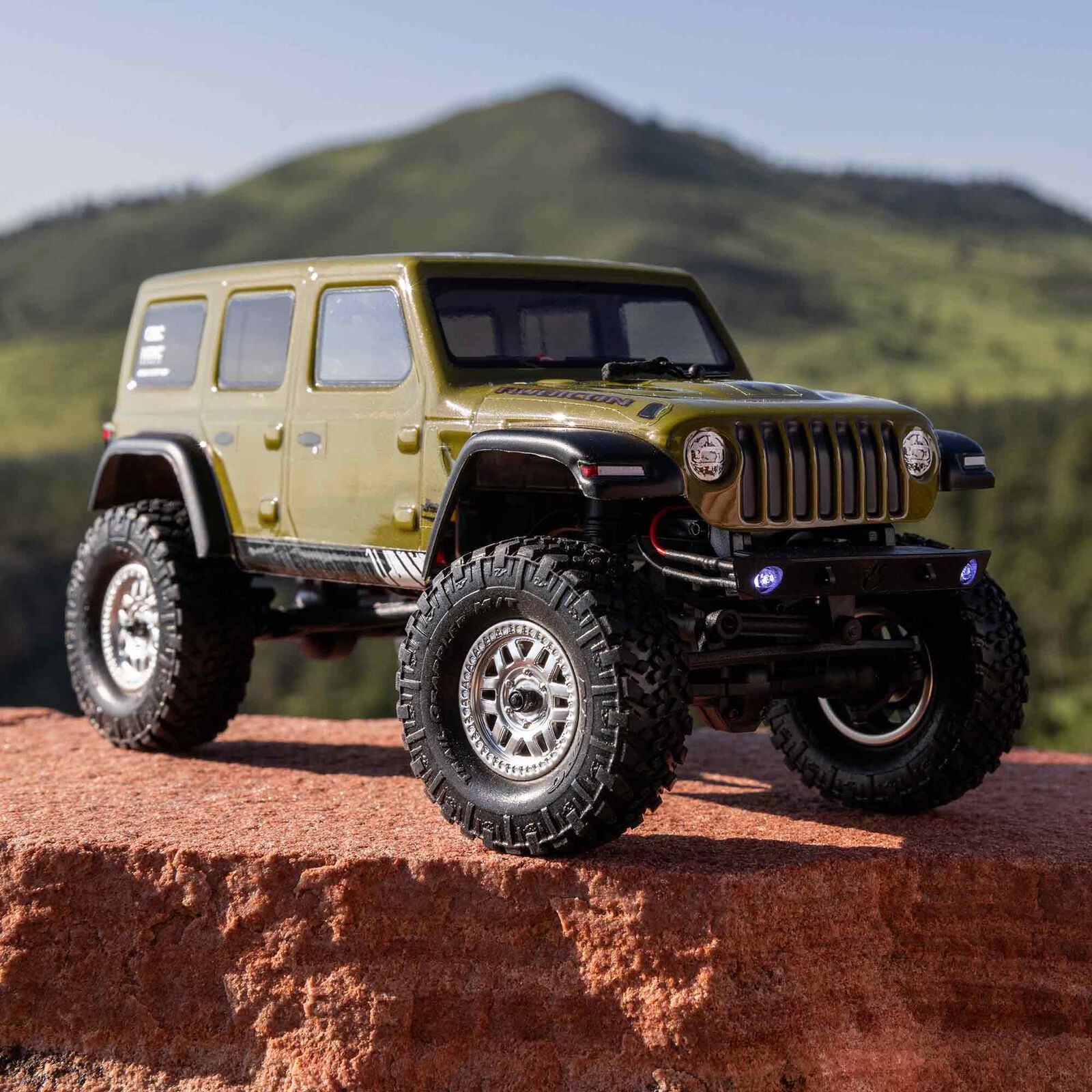

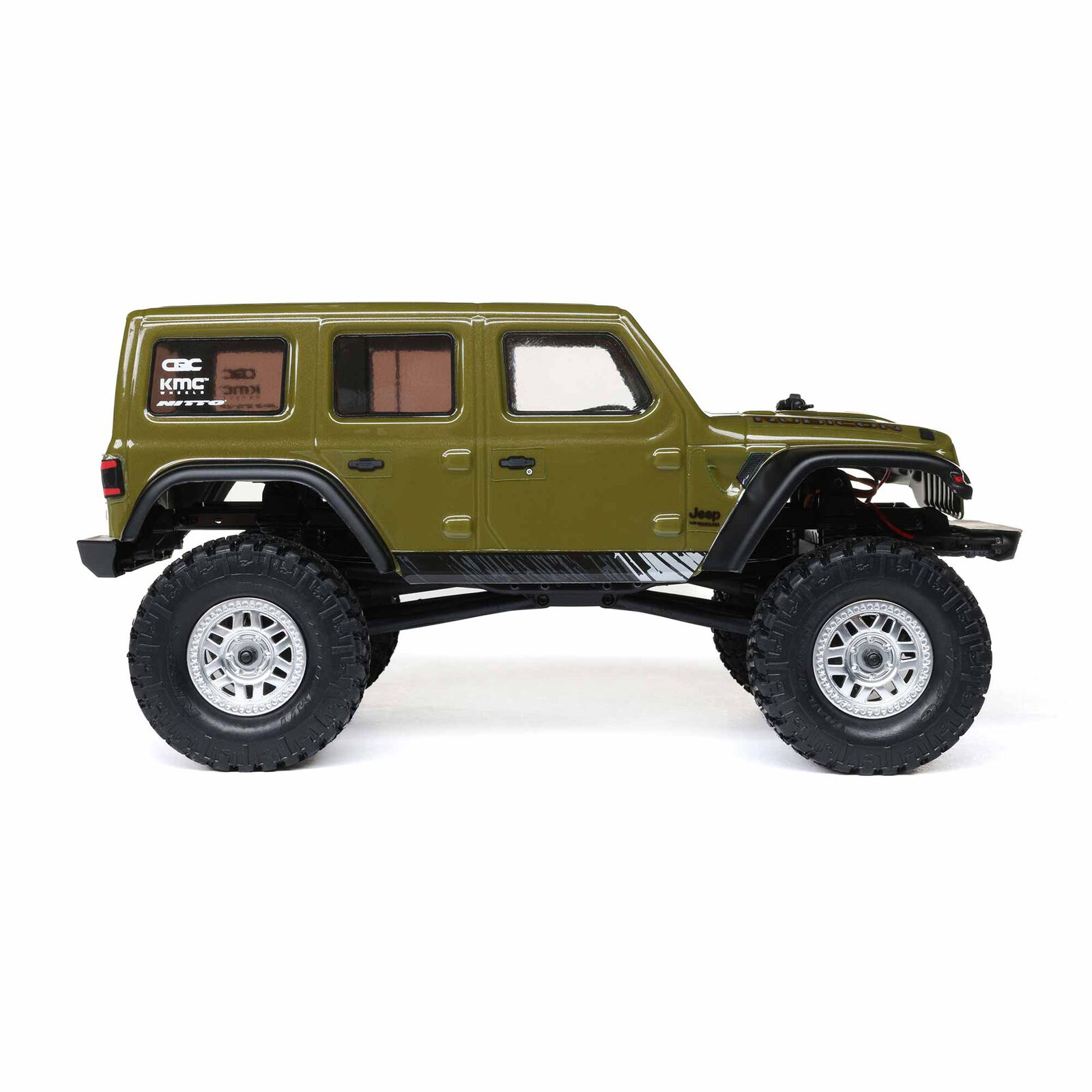

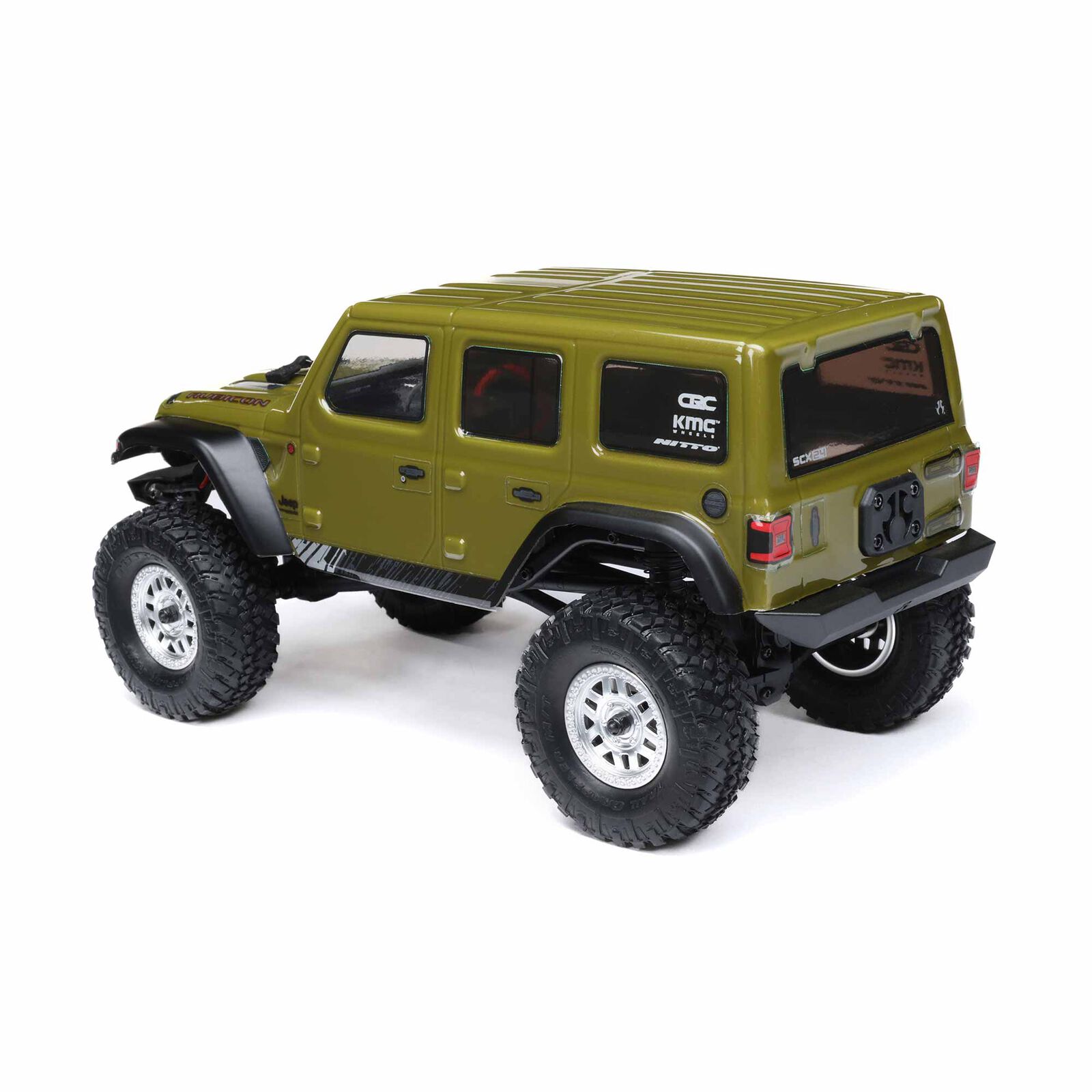

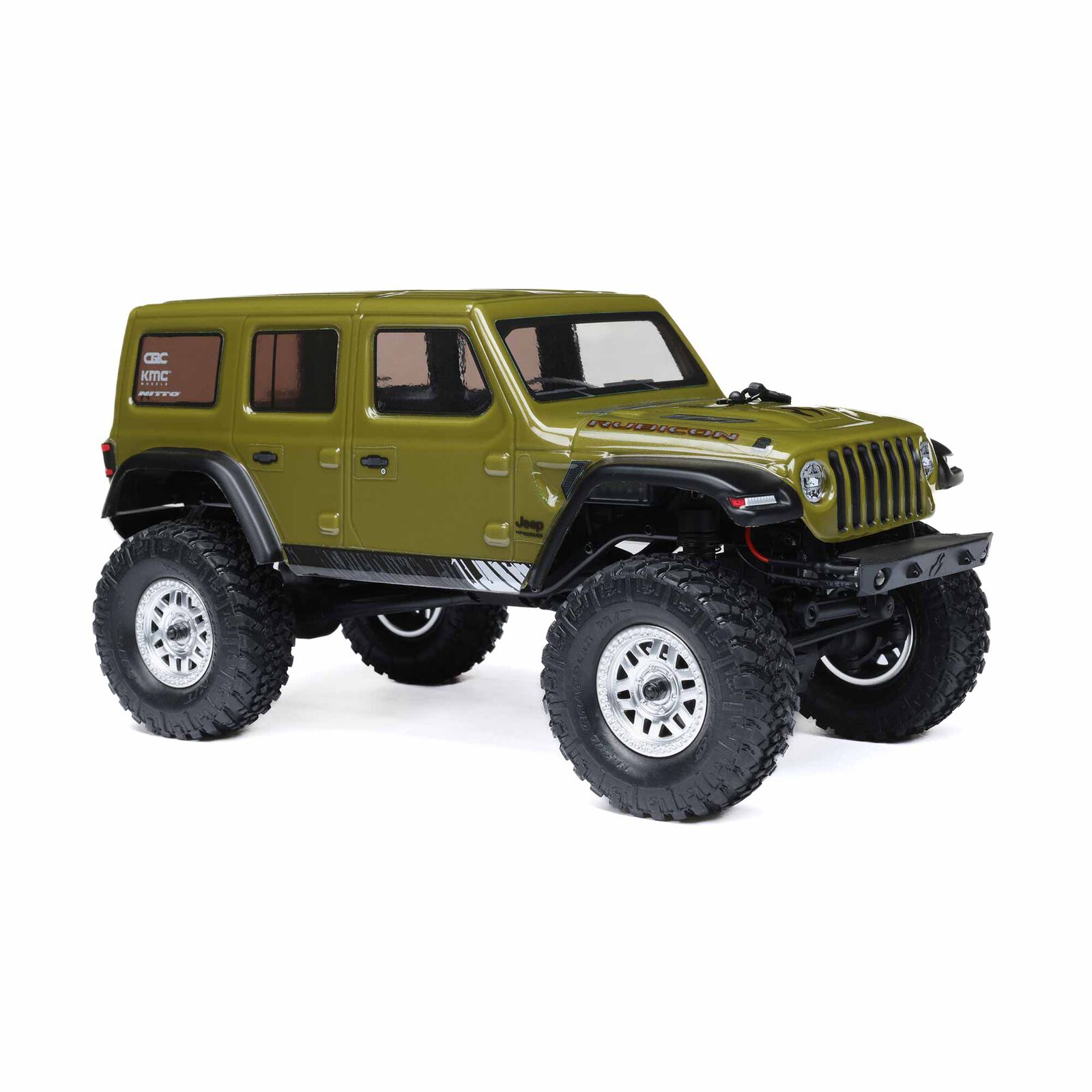

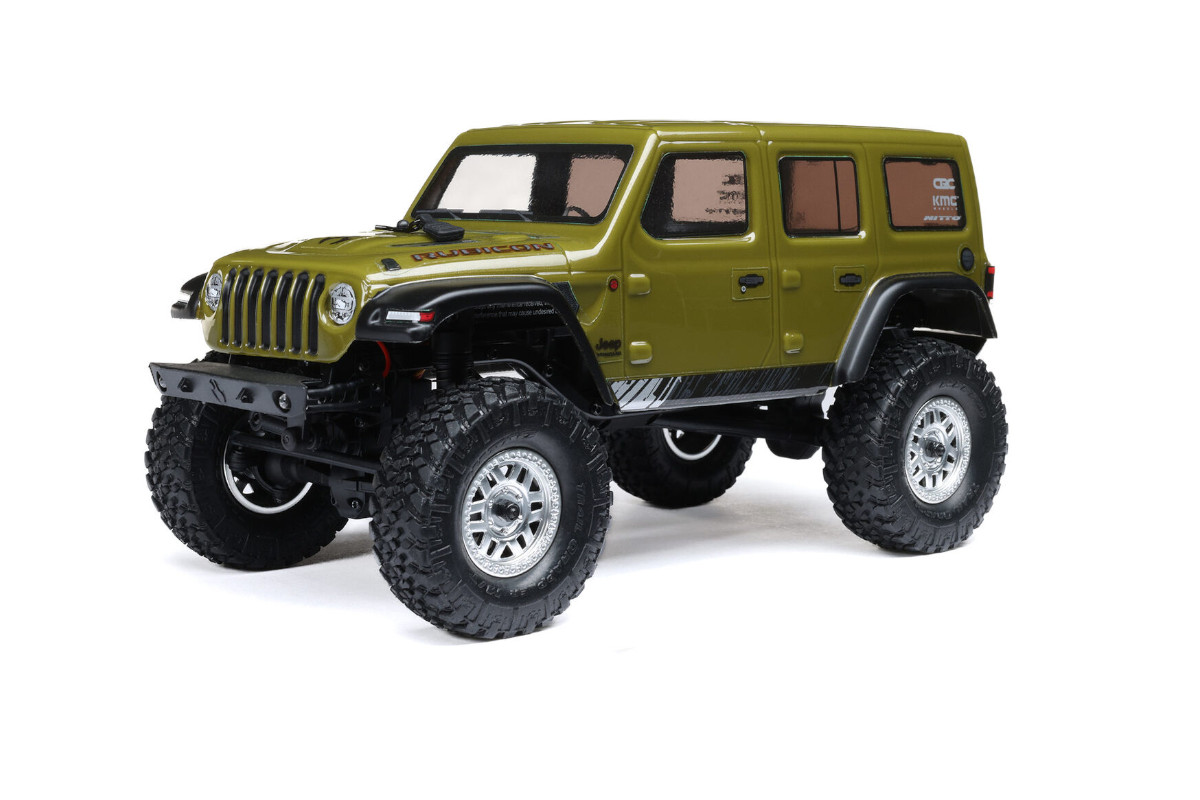

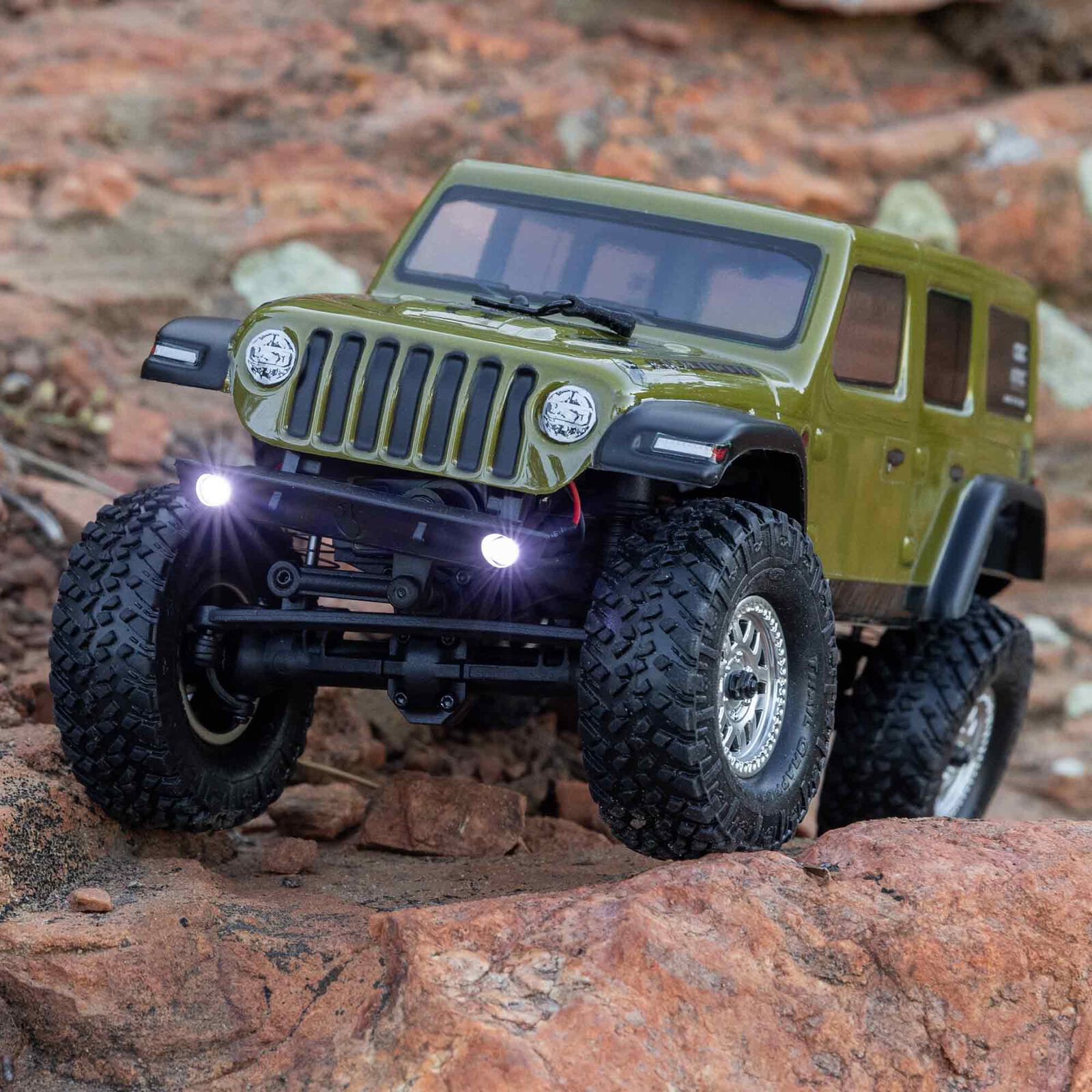

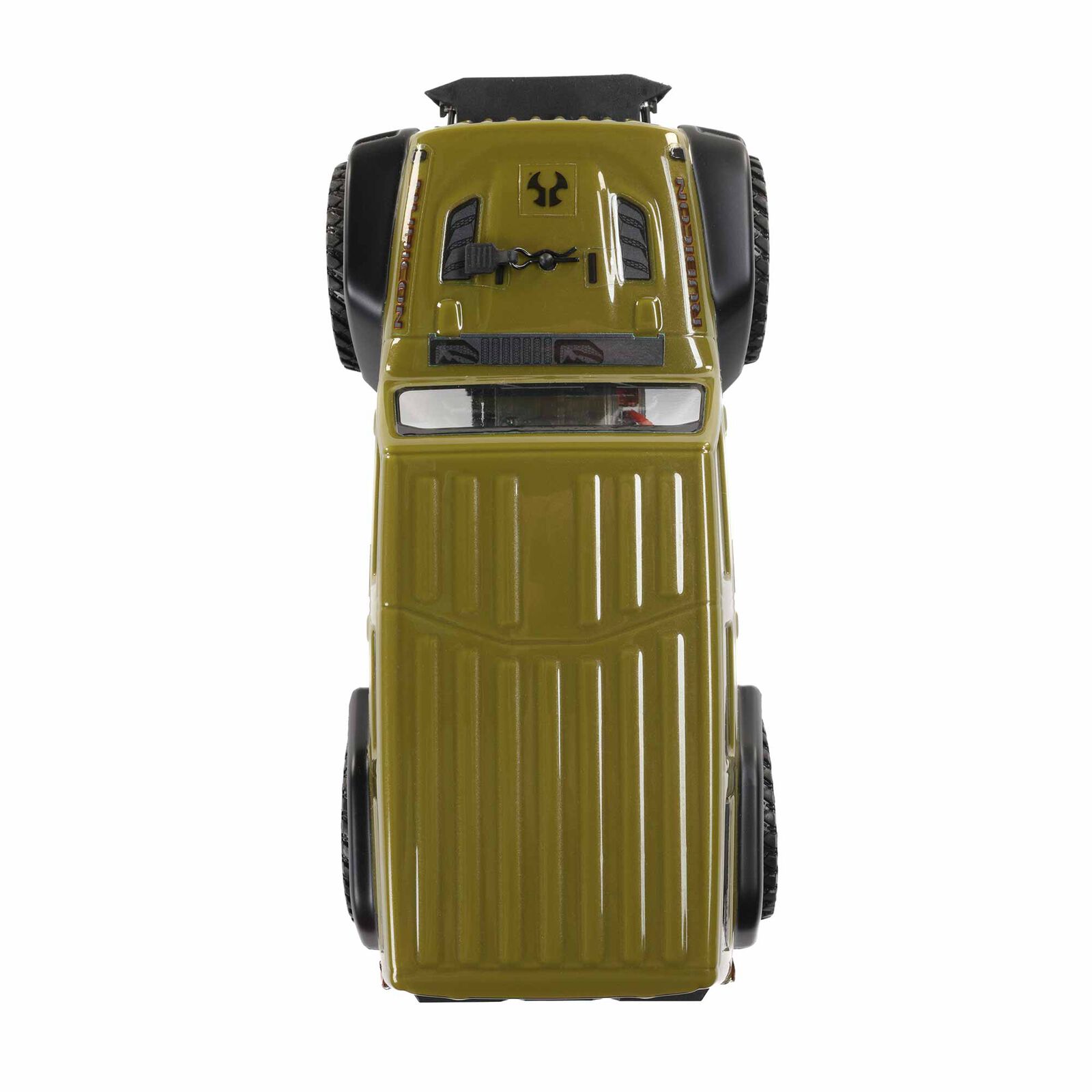

JEEP WRANGLER JLU BODY
Like the full-size Jeep Wrangler JLU, the Axial SCX24 Jeep Wrangler JLU embodies adventure. Its detailed scale body comes factory-finished in two new color options. For quick battery access, just remove one clip to tilt back the body.
WORM GEARS
The front and rear differentials house metal worm gears for durability, increased ground clearance, and strong drag brakes.
STEEL C-CHANNEL CHASSIS FRAME RAILS
Just like the 1/10 scale SCX10 platform, the SCX24 chassis features rugged and sturdy steel C-channel frame rails with bracing to keep everything intact and aligned.
FRONT AND REAR SOLID AXLE HOUSINGS
The front and rear axles consist of a two piece, molded composite solid axle design. For optimal handling, the SCX24 suspension features a 3-link front and 4-link rear setup.
4-LINK REAR SUSPENSION
The rear suspension geometry uses a 4-link design which is optimized to reduce axle steer and torque twist.
OIL-FILLED SHOCKS
New oil-filled shocks allow the suspension to articulate smoothly over rough terrain. You can adjust the preload with 1mm, 2mm, and 4mm spacers to fine-tune your rig for your handling needs.
DURABLE STEEL AXLES
Steel front and rear axles, front stub axles, and dogbones provide the strength and durability needed to keep going during tough climbs and over rough trails.
SPLINED DRIVE SHAFTS
The front and rear drive shafts are splined and sleeved to allow for maximum suspension travel while keeping the power to the wheels.
DYNAMITE BRUSHED MOTOR
The included Dynamite 88T 030-size brushed electric motor provides the right amount of torque for making steep climbs. It’s mated to a steel motor mount to keep flex to a minimum and help protect the gears.
SPEKTRUM SLT2 2.4GHz RADIO SYSTEM
The Spektrum SLT2 2-channel radio system offers high-end features such as throttle/steering travel adjust and throttle limiting. The ready-to-run package is so complete, even AA transmitter batteries are included.
FULL BALL BEARINGS
Just because the SCX24 is small doesn’t mean its features follow suit. There are no bushings here. The drivetrain spins freely on sealed cartridge bearings throughout the entire vehicle.
Product Specifications
| Ball Bearings | Full |
| Battery | Included |
| Body | Axial Jeep JLU Hardtop, painted |
| Brakes | Integral with ESC |
| Charger | Included |
| Chassis | Stamped Steel Chassis Rails |
| Completion Level | Ready-To-Run |
| Connector Type | PH 2.0 (High-Current Ultra Micro) |
| Differential | Worm Gear 16T/4T |
| Drive Type | Forward/Brake/Reverse |
| Drivetrain | 4WD |
| Ground Clearance | 1.0 in (25.5mm) |
| LiPo Compatibility | 2S |
| Make | Jeep |
| Motor Size | 030 |
| Motor Type | Brushed |
| Pinion | 10T |
| Power Type | Electric |
| Product Height | 4.1″ (104 mm) |
| Product Length | 7.8″ (198 mm) |
| Product Width | 3.9″ (99 mm) |
| Radio | Included |
| Receiver | Included |
| Scale | 1/24 |
| Servos | Included |
| Shock Type | Coil-over, oil-filled |
| Speed Control | Included |
| Spur Gear | 55T |
| Steering Type | 2WS |
| Suspension | Solid Axle, Front and Rear |
| Tire Tread | Nitto Trail Grappler M/T |
| Vehicle Size | Mini |
| Vehicle Type | Rock Crawler |
| Wheelbase | 5.2″ (132 mm) |
