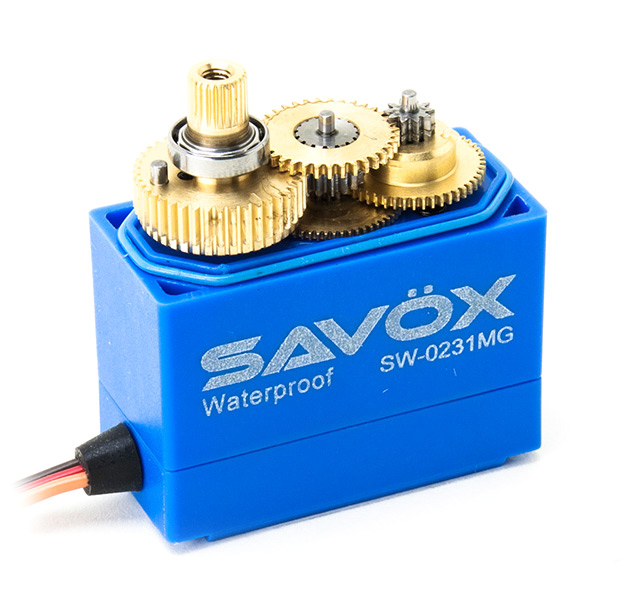

SAVÖX SW-0231MGP – Water Proof Metal-Geared Standard-Sized Servo – HV
The SW-0231MG Plus is a budget friendly, waterproof, high torque, high voltage, digital servo in a slightly taller case than most standard sizes. This is a great upgrade if your looking to drive your RC vehicle in any condition yet unable to use higher voltage to obtain more power.
Features:
- New: High voltage (max 7.4V)
- New: Lock Protection
- Strong metal gear train for added durability
- Waterproof case design (IP67)
- Ideal for cars, truck, and boats subject to water or snow
- Slightly taller case design
Specifications:
- Torque @ 4.8V: 12kg/cm
- Torque @ 6V: 15kg/cm
- Torque @ 7.4V: 25kg/cm
- Speed @ 4.8V: 0.20 sec/60°
- Speed @ 6V: 0.17 sec/60°
- Speed @ 7.4V: 0.15 sec/60°
- Dimensions L x W x H: 41.8 x 20.2 x 42.9mm
- Weight: 66g
Technical Details:
- Operating Temperature: -10° to 50°C
- Running Current (no load): 100mA @4.8V, 120mA @6.0V
- Stall Current (at locked): 3800mA @4.8V, 4800mA @6.0V
- Idle Current: 5mA @4.8V, 5mA @6.0V
- Wire Length: 200 ± 5mm
- Output Gear Spline: 25 Tooth
- Bearings: 2BB
- Operating Travel: 100° (1000 → 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 800 → 2200 µ second
- Maximum Travel: Appx 130° (900 → 2100 µ second)
- Refresh Rate: 240 Hz
- Motor Type: Brushed
