SAVOX SH-0350 Servo 2,6Kg 0,16s Alu Micro

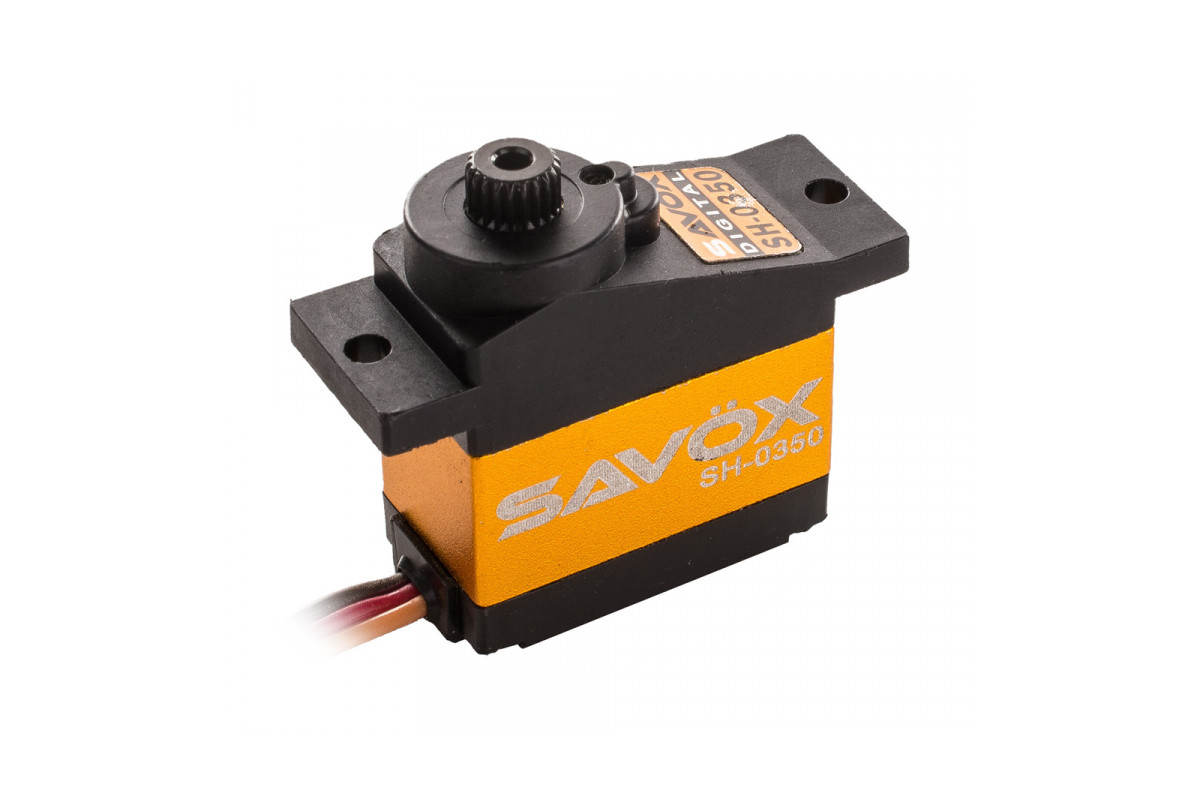

SAVÖX SH-0350 – Micro Servo

The SH-0350 is a budget-friendly, plastic-geared, micro-sized servo with an aluminum case for additional support.

Features:

• Aluminum middle case allows for cooler operating temperatures
• Ideal for small planes and 450 size helicopters

Specifications:

• Torque @4.8V: 2.2kg/cm
• Torque @6V: 2.6kg/cm
• Speed @4.8V: 0.21 sec/60 deg
• Speed @6V: 0.16 sec/60 deg
• Dimensions L x W x H: 22.8 x 12.0 x 25.4mm
• Weight: 12.3g

Technical Details:

• Operating Temperature: -10° to 50°C
• Running Current (no load): 150mA @4.8V, 180mA @6.0V
• Stall Current (at locked): 1000mA @4.8V, 1200mA @6.0V
• Idle Current: 5mA @4.8V, 5mA @6.0V
• Wire Length: 250 ± 5mm
• Output Gear Spline: 21 Tooth
• Bearings:
• Operating Travel: 90° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 700 → 2300 µ second
• Maximum Travel: Appx 150° (700 → 2300 µ second)
• Refresh Rate: 240 Hz
• Motor Type: Brushed
