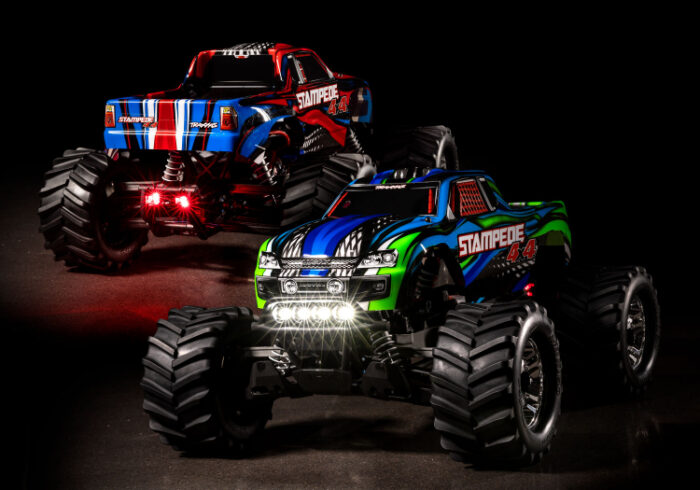

STAMPEDE 4X4 1/10 Scale Brushed High-Performance Monster Truck – BLUE/GREEN GRAPHICS
Stampede 4X4 is built Traxxas Tough™ to withstand all the 4-wheel drive monster mayhem you can dish out. Its tall ground clearance, long-arm suspension, and aggressive chevron Maxx™ tires make Stampede 4X4 feel unstoppable. Waterproof electronics keep the fun going through wet weather conditions and LED lighting extends your driving fun after dark. No other truck offers Stampede 4X4’s unique style, capability, and reputation for durability. Stampede 4X4 is perfect for any skill level and comes fully assembled, painted, and Ready-to-Drive® with the included 8.4V NiMH battery pack and charger.
FEATURES ON STAMPEDE 4X4 (#67054-61):

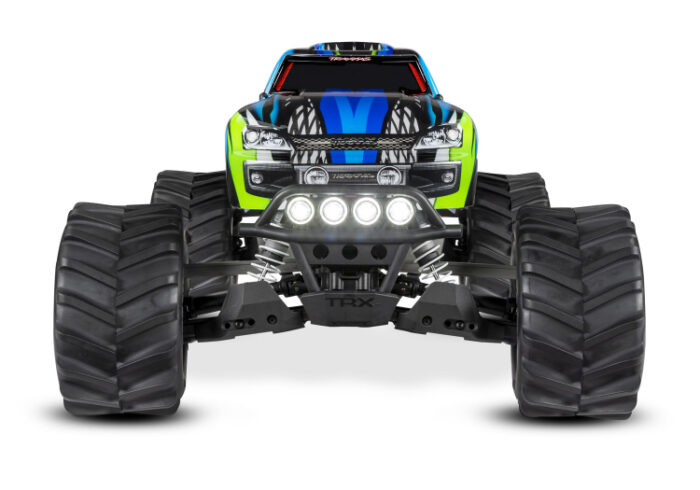

- NEW Factory-installed front and rear LED lighting
- NEW ProGraphix® paint
- Includes battery and charger:
- – 4-amp 12V DC Peak-Detecting Fast Charger
- – Traxxas 3000 mAh 8.4V 7-cell NiMH battery with iD®
- TQ™ 2.4GHz radio system
- Waterproof electronics all-weather, all-season RC excitement

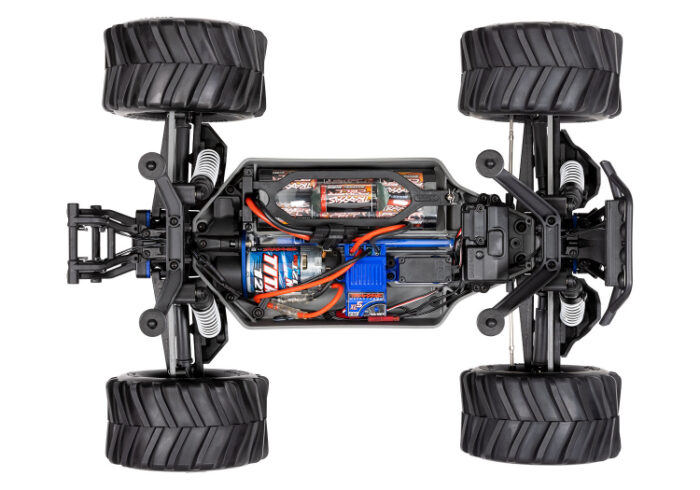

- Titan® 12-turn 550 motor
- XL-5 electronic speed control
- Sealed, steel-gear front and rear differentials
- Shaft-driven 4WD with heavy-duty axles
- 100% Fully assembled and Ready-To-Race®
STAMPEDE 4X4 (#67054-61) SPECS:
- Length: 397 mm
- Front Track: 340 mm
- Rear Track: 340 mm
- Center Ground Clearance: 75 mm
- Weight: 2.57 kg
- Height (overall): 227 mm
- Wheelbase: 275 mm
- Shock Length: Long (front), XXLong (rear)
- Tires: Chevron Maxx™ 2.8″
- Tire Diameter: 5.1 inches (129 mm) (front and rear)
- Wheels (front/rear): 2.8″ Chrome (All-Star™)
- Wheel Diameter: 2.8” (72 mm)
- Speed Control Type: XL-5™ Electronic Speed Control
- Motor (electric): Titan® 12T 500 (12-turn)
- Overall Drive Ratio: 23.5 (stock, out-of-box)
- Differential Type: Hardened Steel Bevel, Sealed, Limited Slip
- Gear Pitch: 32
- Chassis Structure/Material: Molded Tub / Nylon Composite
- Drive System: Shaft-Driven, Direct Drive 4WD
- Steering: Dual-Bellcrank with Integrated Servo Saver
- Radio System: TQ™ 2.4GHz (2-channel)
- Body: ProGraphix, Traxxas Stampede
- Top Speed: 48+kph**
- Skill Level: 1
- *Battery Tray Dimensions: 142 x 48.5 x 23/25 mm
- Included Charger: Traxxas 4-amp 12V DC Peak Detecting Fast Charger
- Included Batteries: Traxxas 7-cell NiMH battery with iD®
- Required Items: 4 “AA” Batteries (for transmitter)
*With optional speed pinion gear (sold separately)
**Battery expansion kit available (#6727X).
XL-5 (WATERPROOF) ESC SPECIFICATIONS:
- Input voltage: 4-7 Cells NiMH (4.8 to 8.4 Volts DC)
- Case Size: 31 x 55 x 15.5 mm
- Motor Limit: 15-turns** (540 Size) / 12-turns** (550 Size)
- BEC Voltage: 6.0 VDC
- BEC Current: 1A
- Power Wire: 14 Gauge
- Input Harness Wire: 26 Gauge
- Low Voltage Detection (LVD): 2-Stage indicators, switchable (on or off)
- Thermal Protection: Thermal shutdown
- Single-button setup: Yes, Traxxas EZ-Set®
Profile selection:
- Sport Mode: 100% FWD, 100% brakes, 100% REV
- Race Mode: 100% FWD, 100% brakes, no REV
- Training Mode*: 50% FWD, 100% brakes, 50% REV
*Patented
**Properly Geared
