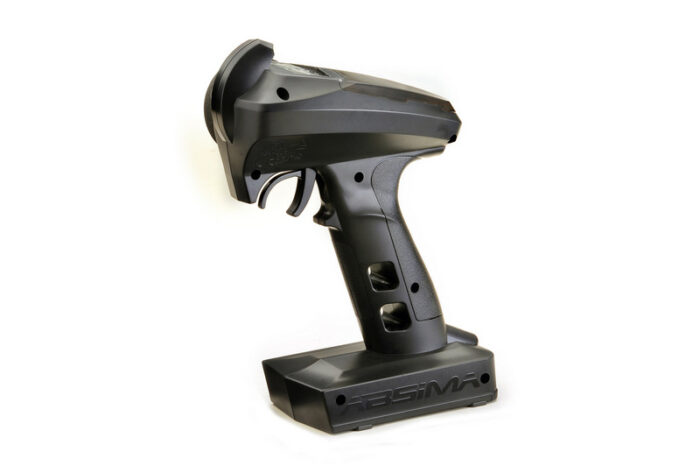

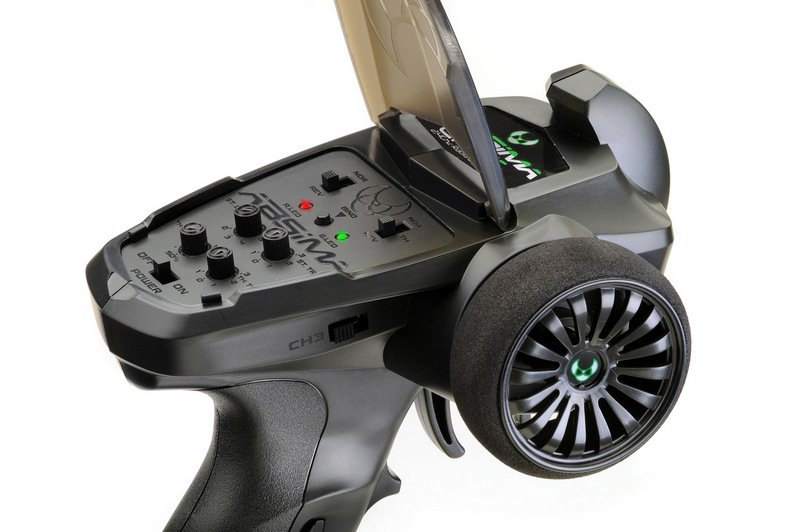

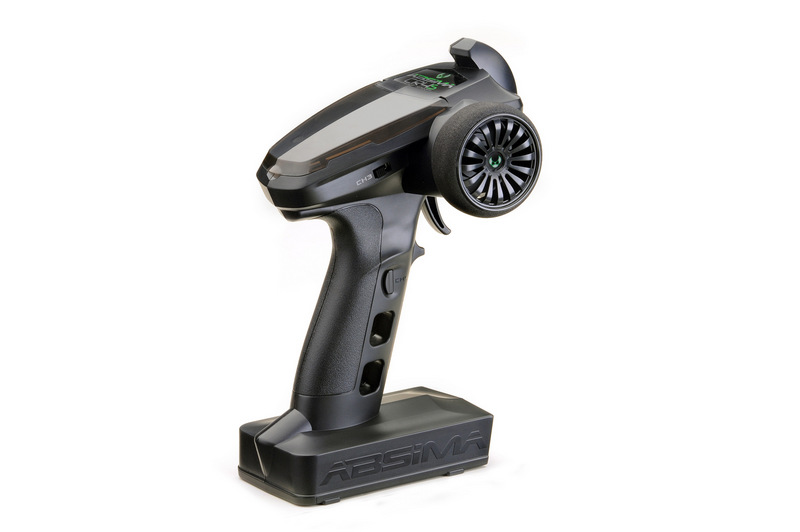

ABSIMA 4-Channel Radio “CR4S” 2.4GHz incl. 2 Receiver

The “CR4S” is a 4-channel remote control including 2 receivers, which uses the latest AFHDS 2.4GHz “ANT” frequency hopping technology from ABSIMA.

Lightweight and compact design, as well as comfortable and ergonomic shape. In addition, the remote control has a “beginner mode” and is therefore also suitable for pilots with less experience and also children.



The included receivers have a very compact design with a size of 30.2*18.0*13.0mm and fit in almost every receiver box.



Description of the channels (the transmitter has 4 channels which are assigned as follows):

CH1: Steering wheel

CH2: Throttle lever (Trigger)

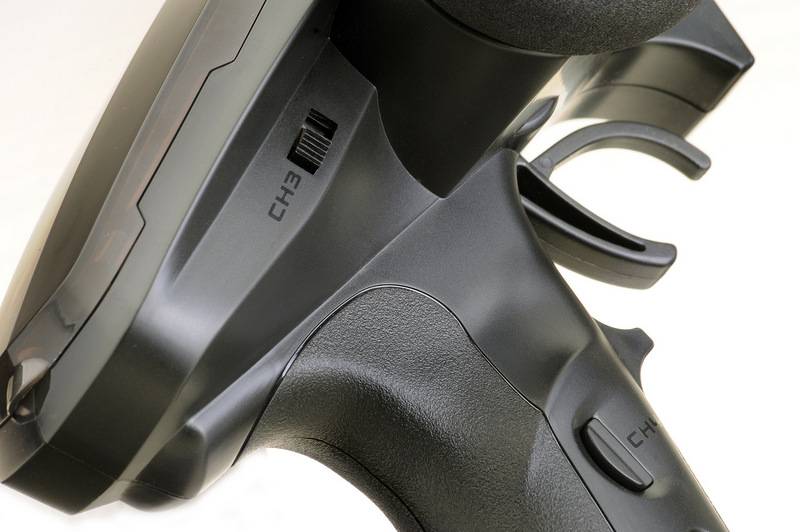

CH3: 3-position toggle switch

CH4: Push button

Reverse function (REV): This function can be used to set the direction of rotation of the steering servo/motor.

Trimming (TRIM): Adjustment of the straight run and throttle neutral position.

Dual Rate function (D/R): The steering angle and also the motor rotation power can be increased or reduced by operating this rotary knobs.

Failsafe function: This function determines what the receiver should pass on if the signal to the transmitter is lost (e.g. emergency braking).

Beginner modus: This function is intended for newcomers. In this mode the motor power is automatically reduced to 50%.



Channels: 4

2.4GHz Protocol: ANT

Distance: >150m

Battery (not included): 4*AAA 1.5 – 6V DC

Low V Warning: <4.2V (only NiMH)

Using LiPo TX battery possible: Yes (only LiPos with built-in low V protection)

Charging interface: No

Antenna type: Single antenne

Temperatur range: -10°C – +60°C

Dimension (L(W/H): 150*100*210 mm

Weight: ca. 130 g
